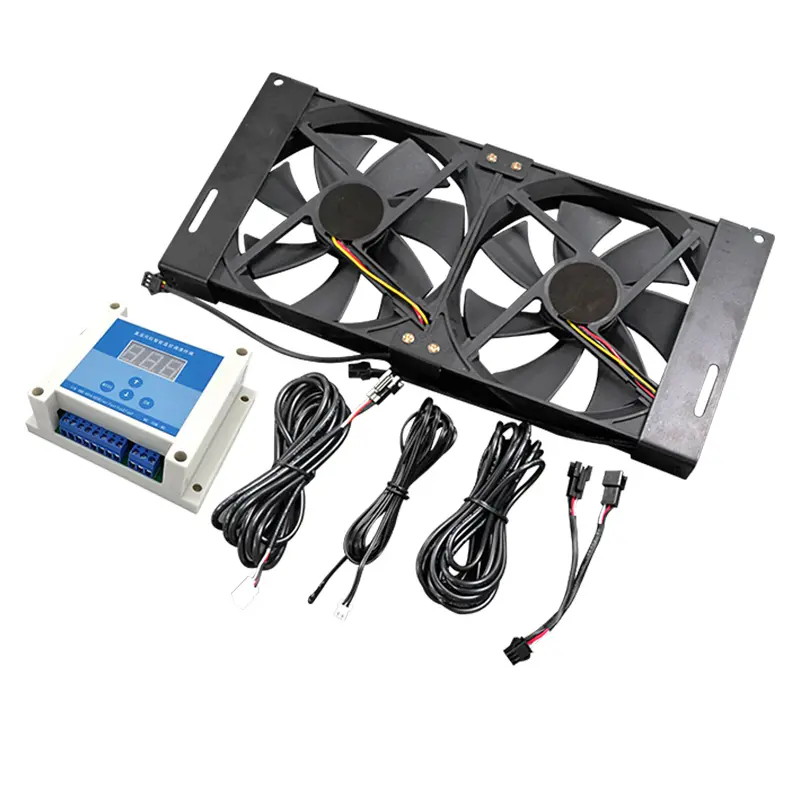

12V RV Fridge Ventilation Cooling Fan 5.5″ (140mm), Custom Mounts For RV Side Vents, Adjustable Temperature Settings, High-Tech Remote With Manual/Auto Modes, Waterproof 14025 fan

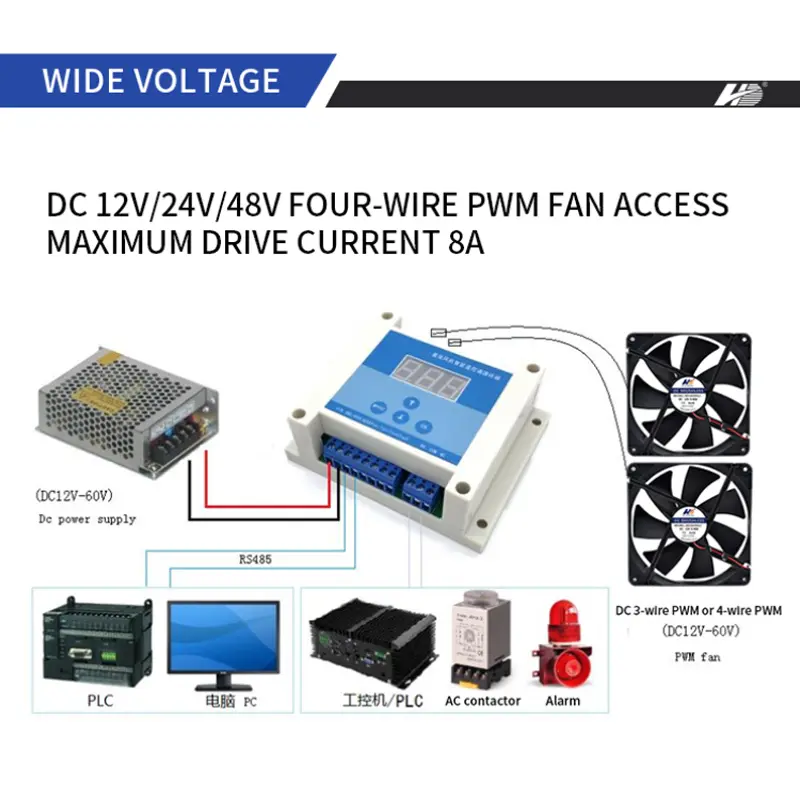

Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD1425L12 | 12 | 7.0～13.8 | 0.23 | 1500 | 1.92 | 67.8 | 2.2 | 0.09 | 31 |
| HD1425M12 | 12 | 7.0～13.8 | 0.3 | 1700 | 2.36 | 83.3 | 2.5 | 0.1 | 35 |
| HD1425H12 | 12 | 7.0～13.8 | 0.4 | 1900 | 2.57 | 90.7 | 3.1 | 0.12 | 38 |
| HD1425L24 | 24 | 14.0～27.6 | 0.13 | 1500 | 1.92 | 67.8 | 2.2 | 0.09 | 31 |
| HD1425M24 | 24 | 14.0～27.6 | 0.18 | 1700 | 2.36 | 83.3 | 2.5 | 0.1 | 35 |
| HD1425H24 | 24 | 14.0～27.6 | 0.23 | 1900 | 2.57 | 90.7 | 3.1 | 0.12 | 38 |
