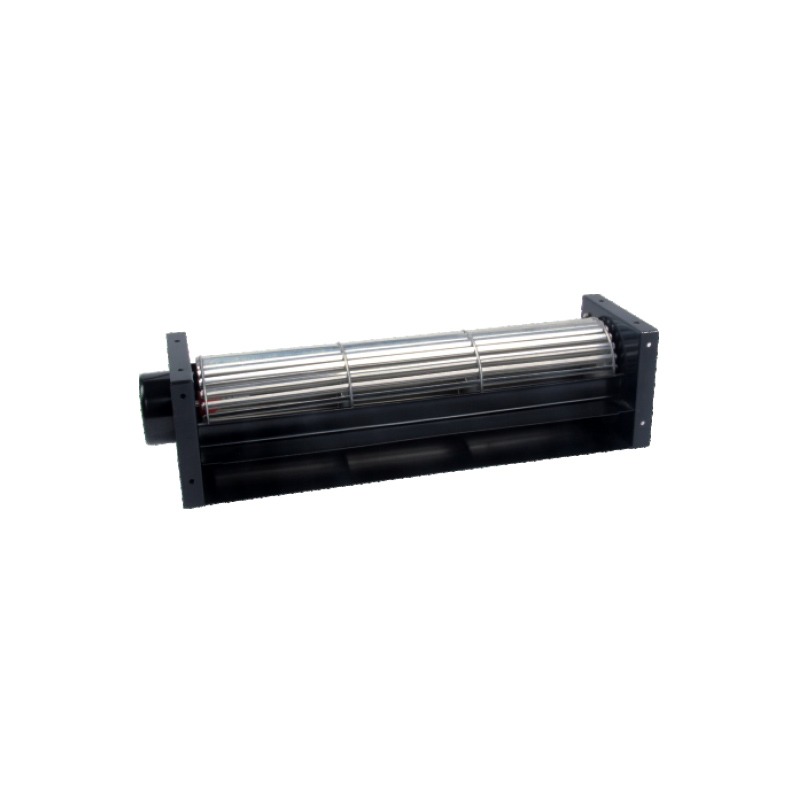

HC 60F DC 12v 24v 48v Cross Flow Fan
DC Brushless
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Sleeve
*Voltage: 12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD

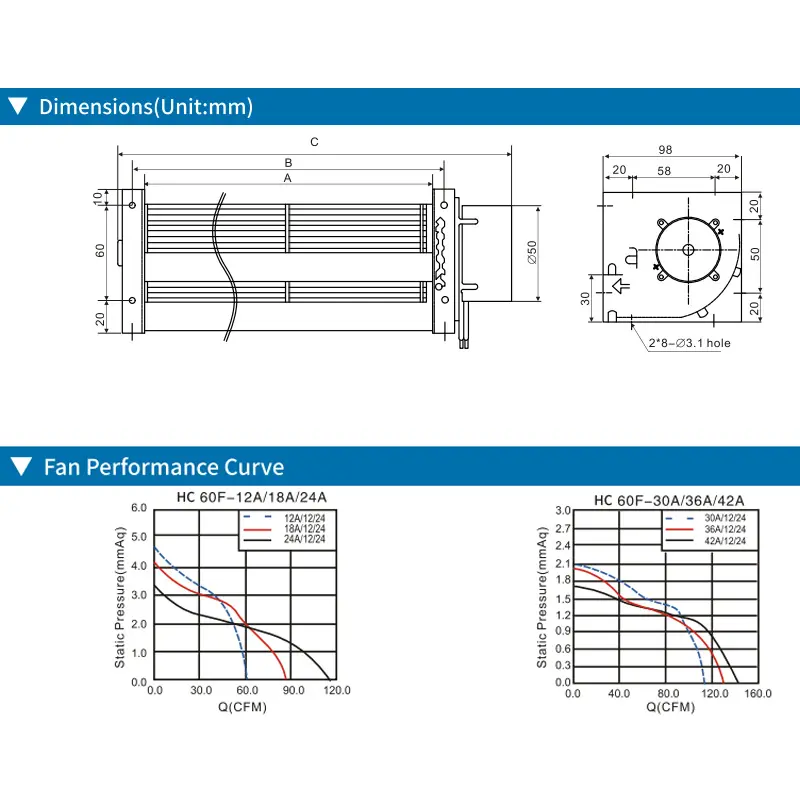

| Model No. |
Size(mm) | Voltage | Current | Speed | Max Pressure | Maximum Air Flow | Noise | ||
| A | B | C | V | A | RPM | mmAq | CFM | dB | |
| HCD60120A12BF | 123 | 138 | 171 | 12 | 0.60 | 2500 | 4.6 | 60 | 46 |
| HCD60120A24BF | 24 | 0.40 | |||||||
| HCD60180A12BF | 186 | 201 | 235 | 12 | 0.80 | 2200 | 4.1 | 88 | 49 |
| HCD60180A24BF | 24 | 0.45 | |||||||
| HCD60240A12BF | 248 | 262 | 296 | 12 | 1.00 | 2000 | 3.3 | 117 | 48 |
| HCD60240A24BF | 24 | 0.55 | |||||||
| HCD60300A12BF | 306 | 321 | 354 | 12 | 0.50 | 1600 | 2.1 | 113 | 43 |
| HCD60300A24BF | 24 | 0.25 | |||||||
| HCD60360A12BF | 368 | 383 | 418 | 12 | 0.55 | 1500 | 1.9 | 131 | 44 |
| HCD60360A24BF | 24 | 0.25 | |||||||
| HCD60420A12BF | 427 | 442 | 477 | 12 | 0.60 | 1400 | 1.7 | 145 | 44 |
| HCD60420A24BF | 24 | 0.30 | |||||||
