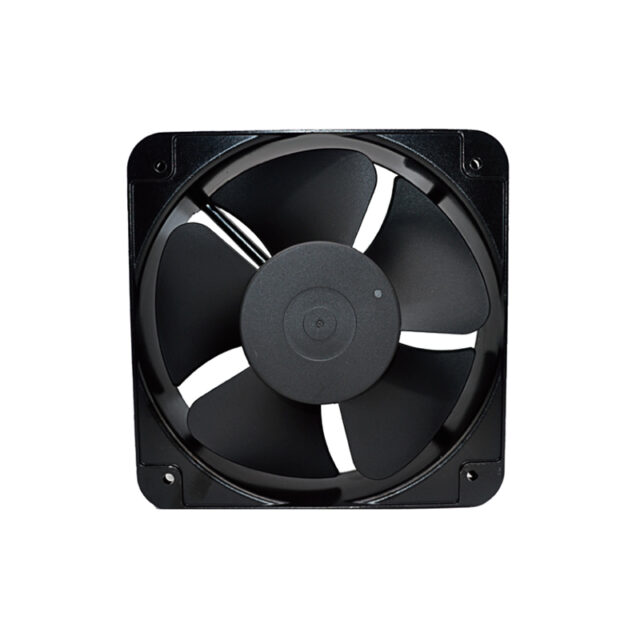

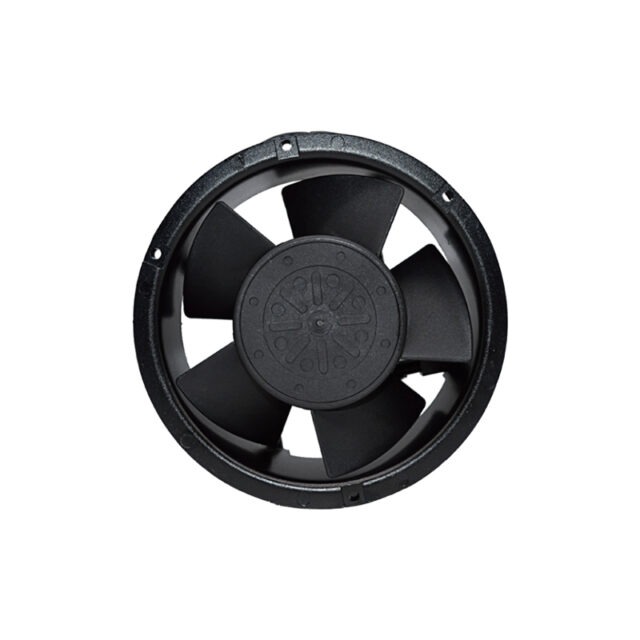

HC 50P AC 110v 220v Cross Flow Fan ball bearing
AC Brushless
Fan performance options:
*Bearing: Ball
*Voltage: 110v/220v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
| Model No. |
Size(mm) | Voltage | Current | Speed | Max Pressure | Maximum Air Flow | Noise | ||
| A | B | C | V | A | RPM | mmAq | CFM | dB | |
| HCE50090A11BP | 100 | 110 | 160 | 110 | 0.13 | 2900 | 2 | 36.7 | 38 |
| HCE50090A22BP | 220 | 0.08 | 2660 | 1.7 | 33.53 | 33 | |||
| HCE50150A11BP | 160 | 170 | 225 | 110 | 0.13 | 2100 | 1.2 | 47.29 | 31 |
| HCE50150A22BP | 220 | 0.08 | 2600 | 1.6 | 58.59 | 38 | |||
| HCE50190A11BP | 200 | 210 | 266 | 110 | 0.19 | 2600 | 1.6 | 91.76 | 40 |
| HCE50190A22BP | 220 | 0.09 | 2500 | 1.5 | 88.24 | 39 | |||
| HCE50290A11BP | 300 | 310 | 375 | 110 | 0.30 | 2900 | 2.0 | 158.82 | 45 |
| HCE50290A22BP | 220 | 0.14 | 2600 | 1.6 | 144.71 | 44 | |||
| HCE50350A11BP | 360 | 370 | 437 | 110 | 0.29 | 2800 | 1.9 | 169.41 | 49 |
| HCE50350A22BP | 220 | 0.14 | 2550 | 1.6 | 155.29 | 44 | |||
| HCE50420A11BP | 430 | 440 | 507 | 110 | 0.28 | 2300 | 1.3 | 162.35 | 44 |
| HCE50420A22BP | 220 | 0.24 | 2200 | 1.2 | 155.29 | 43 | |||
