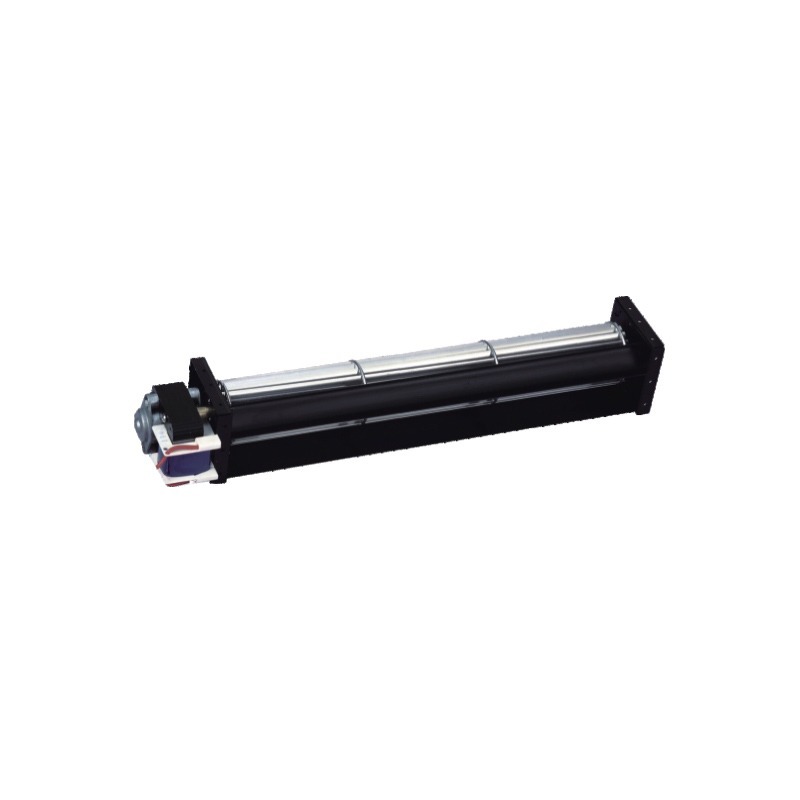

HC 43P AC 110v 220v Cross Flow Fan ball bearing
AC Brushless
Fan performance options:
*Bearing: Ball
*Voltage: 110v/220v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
| Model No. |

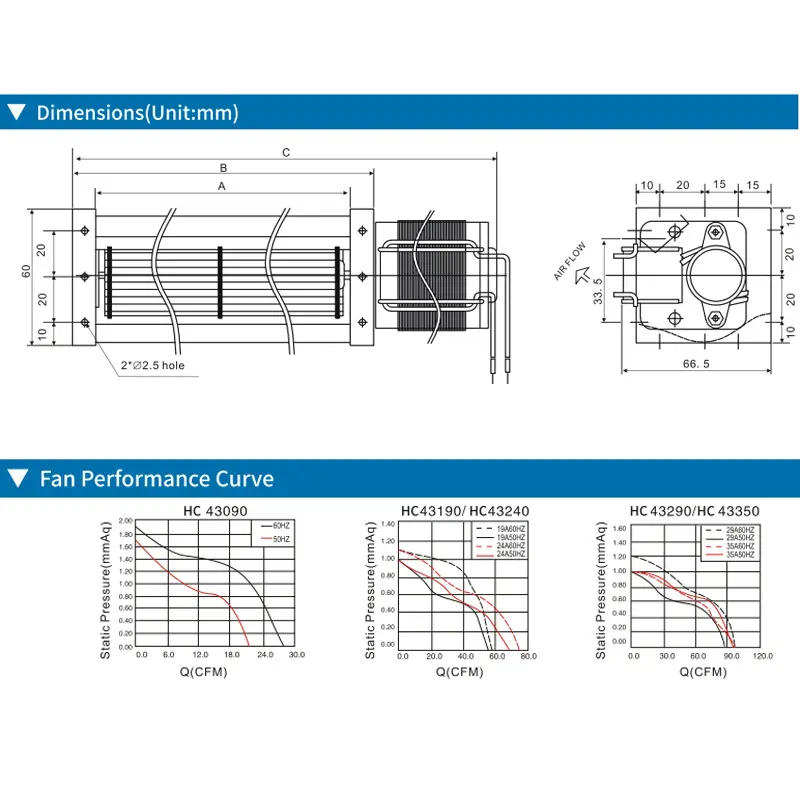

Size(mm) | Voltage | Current | Speed | Max Pressure | Maximum Air Flow | Noise | ||
| A | B | C | V | A | RPM | mmAq | CFM | dB | |
| HCE43090A11BP | 98 | 108 | 160 | 110 | 0.12 | 3000 | 1.9 | 28 | 37 |
| HCE43090A22BP | 220 | 0.08 | 2600 | 1.7 | 21 | 36 | |||
| HCE43150A11BP | 160 | 170 | 222 | 110 | 0.13 | 2500 | 1.2 | 42 | 37 |
| HCE43150A22BP | 220 | 0.07 | 2350 | 1 | 39 | 36 | |||
| HCE43190A11BP | 198 | 208 | 264 | 110 | 0.19 | 2500 | 1.1 | 57 | 39 |
| HCE43190A22BP | 220 | 0.08 | 2400 | 1 | 53 | 39 | |||
| HCE43240A11BP | 250 | 260 | 315 | 110 | 0.20 | 2700 | 1.1 | 74 | 41 |
| HCE43240A22BP | 220 | 0.09 | 2500 | 1 | 67 | 40 | |||
| HCE43290A11BP | 300 | 310 | 375 | 110 | 0.26 | 2800 | 1.2 | 95 | 44 |
| HCE43290A22BP | 220 | 0.14 | 2550 | 1 | 88 | 43 | |||
| HCE43350A11BP | 360 | 370 | 435 | 110 | 0.32 | 2500 | 1 | 95 | 46 |
| HCE43350A22BP | 220 | 0.15 | 2450 | 1 | 92 | 45 | |||
