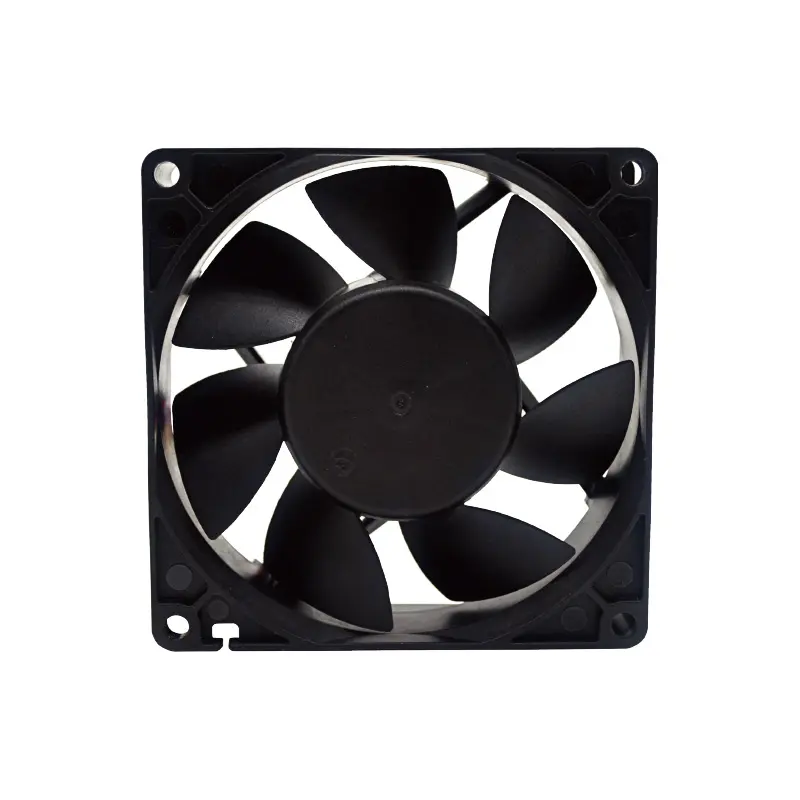

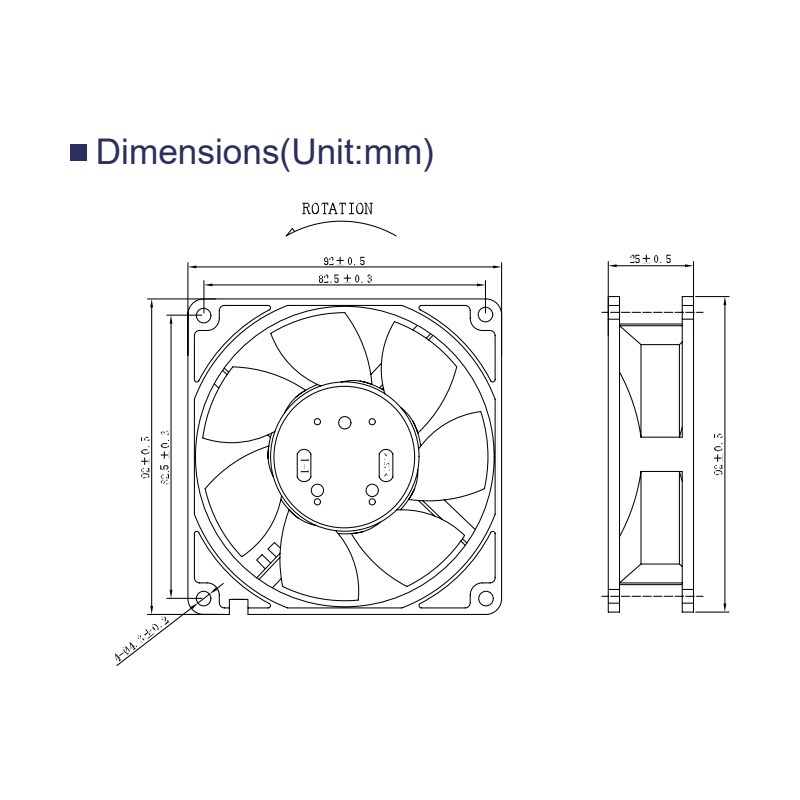

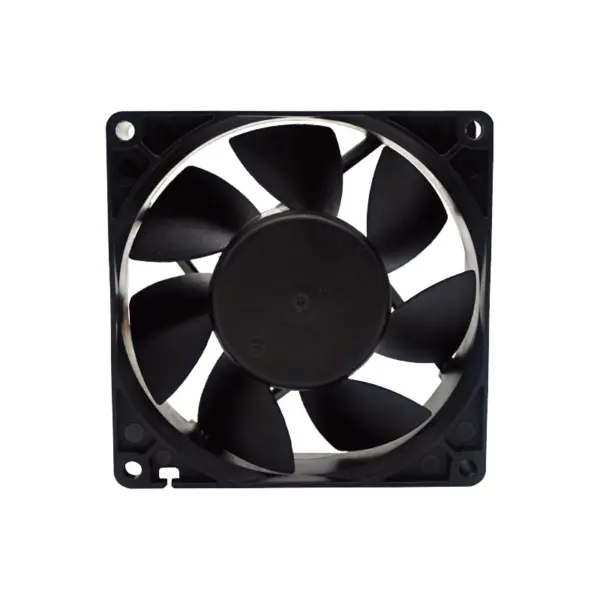

9225 (9025) 92x92x25mm dc fan dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless 90mm fans
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |

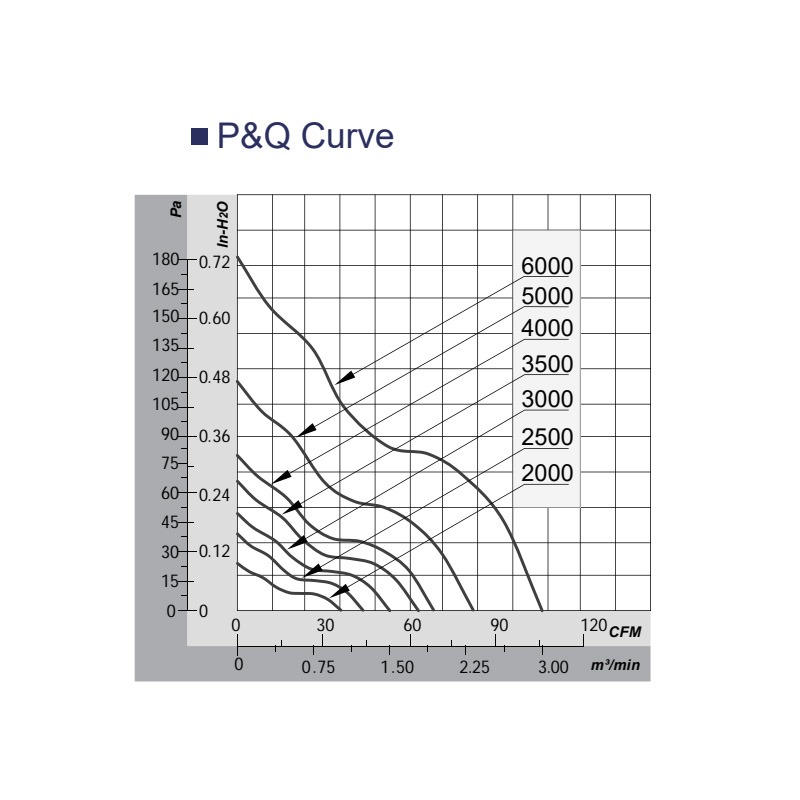

Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD9225L12 | 12 | 7.0～13.8 | 0.2 | 2000 | 0.98 | 34.73 | 2.54 | 0.1 | 26.6 |
| HD9225M12 | 12 | 7.0～13.8 | 0.3 | 2500 | 1.24 | 43.83 | 3.81 | 0.15 | 30.2 |
| HD9225H12 | 12 | 7.0～13.8 | 0.4 | 3000 | 1.49 | 52.76 | 5.08 | 0.2 | 36 |
| HD9225U12 | 12 | 7.0～13.8 | 0.6 | 4000 | 1.92 | 67.82 | 7.87 | 0.31 | 43.9 |
| HD9225V12 | 12 | 7.0～13.8 | 1 | 6000 | 3 | 105.95 | 18.28 | 0.72 | 54.9 |
| HD9225L24 | 24 | 14.0～27.6 | 0.15 | 2000 | 0.98 | 34.73 | 2.54 | 0.1 | 26.6 |
| HD9225M24 | 24 | 14.0～27.6 | 0.2 | 2500 | 1.24 | 43.83 | 3.81 | 0.15 | 30.2 |
| HD9225H24 | 24 | 14.0～27.6 | 0.3 | 3000 | 1.49 | 52.76 | 5.08 | 0.2 | 36 |
| HD9225U24 | 24 | 14.0～27.6 | 0.5 | 4000 | 1.92 | 67.82 | 7.87 | 0.31 | 43.9 |
| HD9225V24 | 24 | 14.0～27.6 | 0.52 | 6000 | 3 | 105.95 | 18.28 | 0.72 | 54.9 |
| HD9225M48 | 48 | 28.0～56.0 | 0.15 | 2500 | 1.24 | 43.83 | 3.81 | 0.15 | 30.2 |
| HD9225H48 | 48 | 28.0～56.0 | 0.2 | 3000 | 1.49 | 52.76 | 5.08 | 0.2 | 36 |
| HD9225U48 | 48 | 28.0～56.0 | 0.4 | 4000 | 1.92 | 67.82 | 7.87 | 0.31 | 43.9 |
| HD9225V48 | 48 | 28.0～56.0 | 0.26 | 6000 | 3 | 105.95 | 18.28 | 0.72 | 54.9 |
