8032 80x80x32mm dc fan dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless fan 80mm
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |

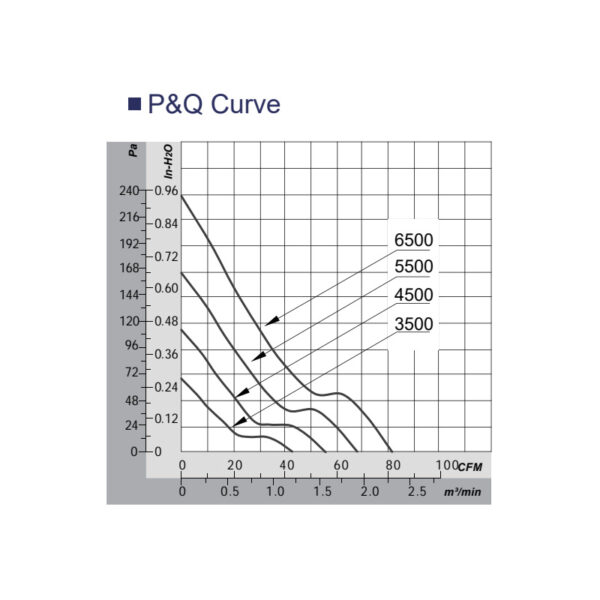

Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD8032L12 | 12 | 7.0～13.8 | 0.4 | 3500 | 1.19 | 42.17 | 6.85 | 0.27 | 47.9 |
| HD8032M12 | 12 | 7.0～13.8 | 0.6 | 4500 | 1.58 | 55.83 | 11.17 | 0.44 | 51.8 |
| HD8032H12 | 12 | 7.0～13.8 | 0.9 | 5500 | 1.9 | 67 | 16.76 | 0.66 | 54.1 |
| HD8032U12 | 12 | 7.0～13.8 | 1.5 | 6500 | 2.28 | 80.52 | 23.87 | 0.94 | 58.2 |
| HD8032L24 | 24 | 14.0～27.6 | 0.2 | 3500 | 1.19 | 42.17 | 6.85 | 0.27 | 47.9 |
| HD8032M24 | 24 | 14.0～27.6 | 0.3 | 4500 | 1.58 | 55.83 | 11.17 | 0.44 | 51.8 |
| HD8032H24 | 24 | 14.0～27.6 | 0.5 | 5500 | 1.9 | 67 | 16.76 | 0.66 | 54.1 |
| HD8032U24 | 24 | 14.0～27.6 | 0.8 | 6500 | 2.28 | 80.52 | 23.87 | 0.94 | 58.2 |
| HD8032L48 | 48 | 28.0～56.0 | 0.1 | 3500 | 1.19 | 42.17 | 6.85 | 0.27 | 47.9 |
| HD8032M48 | 48 | 28.0～56.0 | 0.2 | 4500 | 1.58 | 55.83 | 11.17 | 0.44 | 51.8 |
| HD8032H48 | 48 | 28.0～56.0 | 0.3 | 5500 | 1.9 | 67 | 16.76 | 0.66 | 54.1 |
| HD8032U48 | 48 | 28.0～56.0 | 0.5 | 6500 | 2.28 | 80.52 | 23.87 | 0.94 | 58.2 |
