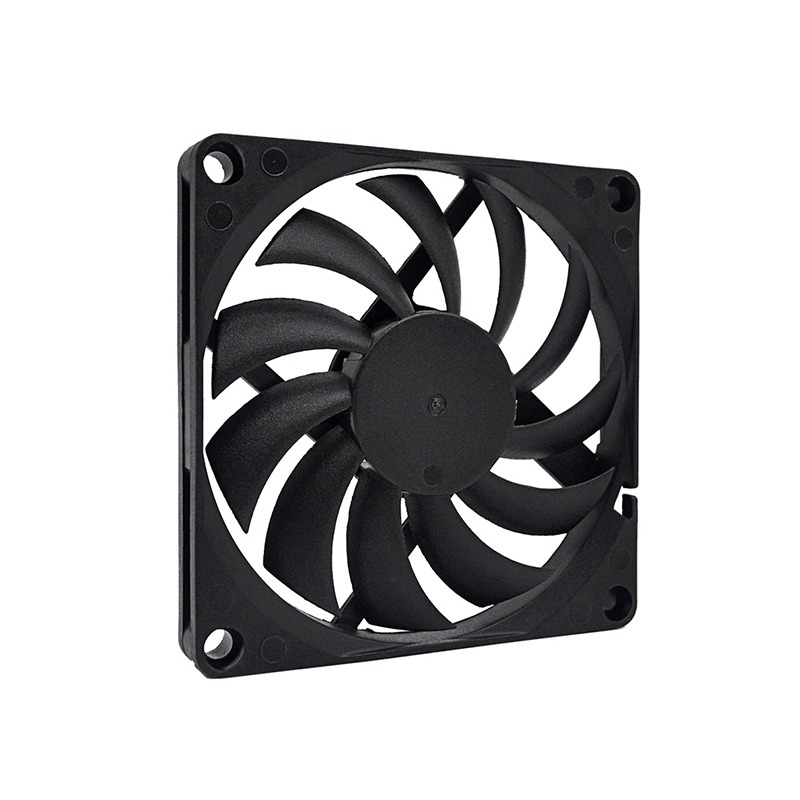

8010 80x80x10mm dc fan dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless cooler fan 80mm 12volt Plastic Square Fan
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD8010L05 | 5 | 4.0～5.75 | 0.2 | 1800 | 0.44 | 15.5 | 1.9 | 0.07 | 18.5 |
| HD8010M05 | 5 | 4.0～5.75 | 0.3 | 2500 | 0.6 | 21.2 | 2.3 | 0.09 | 23 |
| HD8010H05 | 5 | 4.0～5.75 | 0.4 | 3200 | 0.81 | 28.6 | 3.2 | 0.13 | 29 |
| HD8010L12 | 12 | 7.0～13.8 | 0.09 | 1800 | 0.44 | 15.5 | 1.9 | 0.07 | 18.5 |
| HD8010M12 | 12 | 7.0～13.8 | 0.13 | 2500 | 0.6 | 21.2 | 2.3 | 0.09 | 23 |
| HD8010H12 | 12 | 7.0～13.8 | 0.18 | 3200 | 0.81 | 28.6 | 3.2 | 0.13 | 29 |
| HD8010L24 | 24 | 14.0～27.6 | 0.06 | 1800 | 0.44 | 15.5 | 1.9 | 0.07 | 18.5 |
| HD8010M24 | 24 | 14.0～27.6 | 0.08 | 2500 | 0.6 | 21.2 | 2.3 | 0.09 | 23 |
| HD8010H24 | 24 | 14.0～27.6 | 0.13 | 3200 | 0.81 | 28.6 | 3.2 | 0.13 | 29 |
