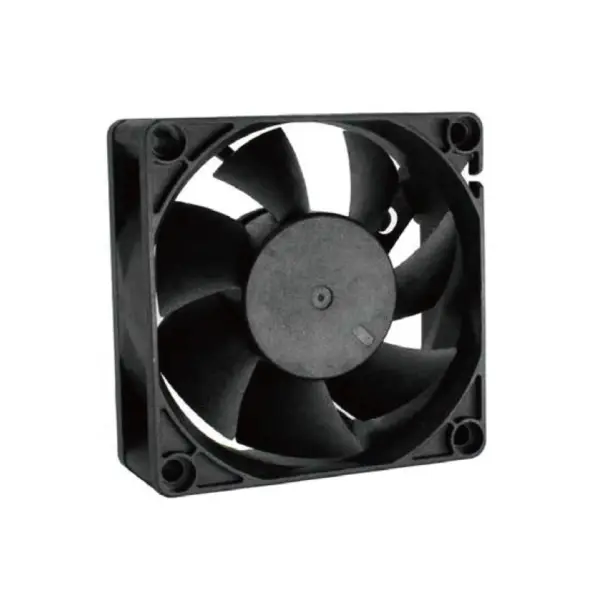

7025 70x70x25mm dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless fan 70mm
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD7025L05 | 5 | 4.0～5.75 | 0.35 | 3000 | 0.69 | 24.2 | 2.9 | 0.11 | 28.5 |
| HD7025M05 | 5 | 4.0～5.75 | 0.5 | 4000 | 0.91 | 32.2 | 5.2 | 0.2 | 35 |
| HD7025H05 | 5 | 4.0～5.75 | 0.6 | 5000 | 1.2 | 42.3 | 7.6 | 0.3 | 42.5 |
| HD7025L12 | 12 | 7.0～13.8 | 0.18 | 3000 | 0.69 | 24.2 | 2.9 | 0.11 | 28.5 |
| HD7025M12 | 12 | 7.0～13.8 | 0.23 | 4000 | 0.91 | 32.2 | 5.2 | 0.2 | 35 |
| HD7025H12 | 12 | 7.0～13.8 | 0.32 | 5000 | 1.2 | 42.3 | 7.6 | 0.3 | 42.5 |
| HD7025L24 | 24 | 14.0～27.6 | 0.1 | 3000 | 0.69 | 24.2 | 2.9 | 0.11 | 28.5 |
| HD7025M24 | 24 | 14.0～27.6 | 0.15 | 4000 | 0.91 | 32.2 | 5.2 | 0.2 | 35 |
| HD7025H24 | 24 | 14.0～27.6 | 0.21 | 5000 | 1.2 | 42.3 | 7.6 | 0.3 | 42.5 |
| HD7025L48 | 48 | 28.0～56.0 | 0.06 | 3000 | 0.69 | 24.2 | 2.9 | 0.11 | 28.5 |
| HD7025M48 | 48 | 28.0～56.0 | 0.09 | 4000 | 0.91 | 32.2 | 5.2 | 0.2 | 35 |
| HD7025H48 | 48 | 28.0～56.0 | 0.13 | 5000 | 1.2 | 42.3 | 7.6 | 0.3 | 42.5 |
