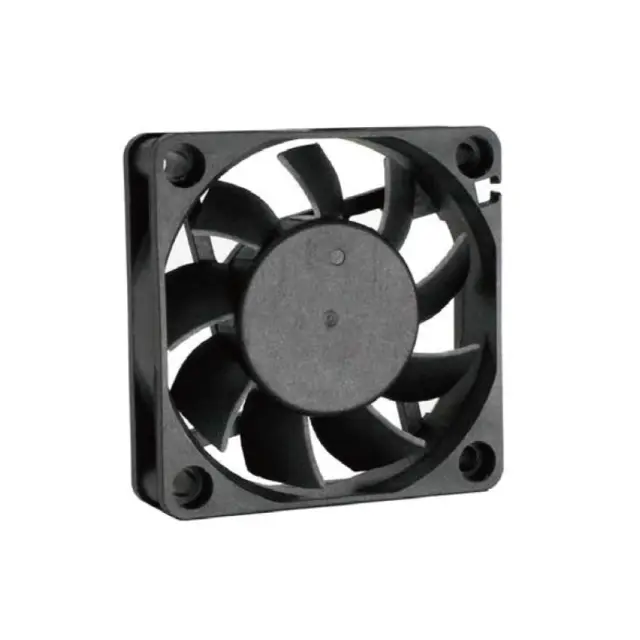

6025 60x60x25mm dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless fans 60mm
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD6025L05 | 5 | 4.0～5.75 | 0.4 | 4000 | 0.45 | 15.8 | 5.5 | 0.22 | 29.7 |
| HD6025M05 | 5 | 4.0～5.75 | 0.5 | 5000 | 0.63 | 22.3 | 7.9 | 0.31 | 36.2 |
| HD6025H05 | 5 | 4.0～5.75 | 0.7 | 6000 | 0.72 | 25.4 | 11.1 | 0.44 | 41.3 |
| HD6025L12 | 12 | 7.0～13.8 |
0.18 | 4000 | 0.45 | 15.8 | 5.5 | 0.22 | 29.7 |
| HD6025M12 | 12 | 7.0～13.8 |
0.23 | 5000 | 0.63 | 22.3 | 7.9 | 0.31 | 36.2 |
| HD6025H12 | 12 | 7.0～13.8 |
0.32 | 6000 | 0.72 | 25.4 | 11.1 | 0.44 | 41.3 |
| HD6025U12 | 12 | 7.0～13.8 |
0.5 | 8000 | 0.99 | 35 | 19 | 0.75 | 48.7 |
| HD6025L24 | 24 | 14.0～27.6 | 0.09 | 4000 | 0.45 | 15.8 | 5.5 | 0.22 | 29.7 |
| HD6025M24 | 24 | 14.0～27.6 | 0.14 | 5000 | 0.63 | 22.3 | 7.9 | 0.31 | 36.2 |
| HD6025H24 | 24 | 14.0～27.6 | 0.21 | 6000 | 0.72 | 25.4 | 11.1 | 0.44 | 41.3 |
| HD6025U24 | 24 | 14.0～27.6 | 0.3 | 8000 | 0.99 | 35 | 19 | 0.75 | 48.7 |
| HD6025L48 | 48 | 28.0～56.0 | 0.06 | 4000 | 0.45 | 15.8 | 5.5 | 0.22 | 29.7 |
| HD6025M48 | 48 | 28.0～56.0 | 0.09 | 5000 | 0.63 | 22.3 | 7.9 | 0.31 | 36.2 |
| HD6025H48 | 48 | 28.0～56.0 | 0.14 | 6000 | 0.72 | 25.4 | 11.1 | 0.44 | 41.3 |
| HD6025U48 | 48 | 28.0～56.0 | 0.18 | 8000 | 0.99 | 35 | 19 | 0.75 | 48.7 |
