6025 60x60x25mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan
DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |

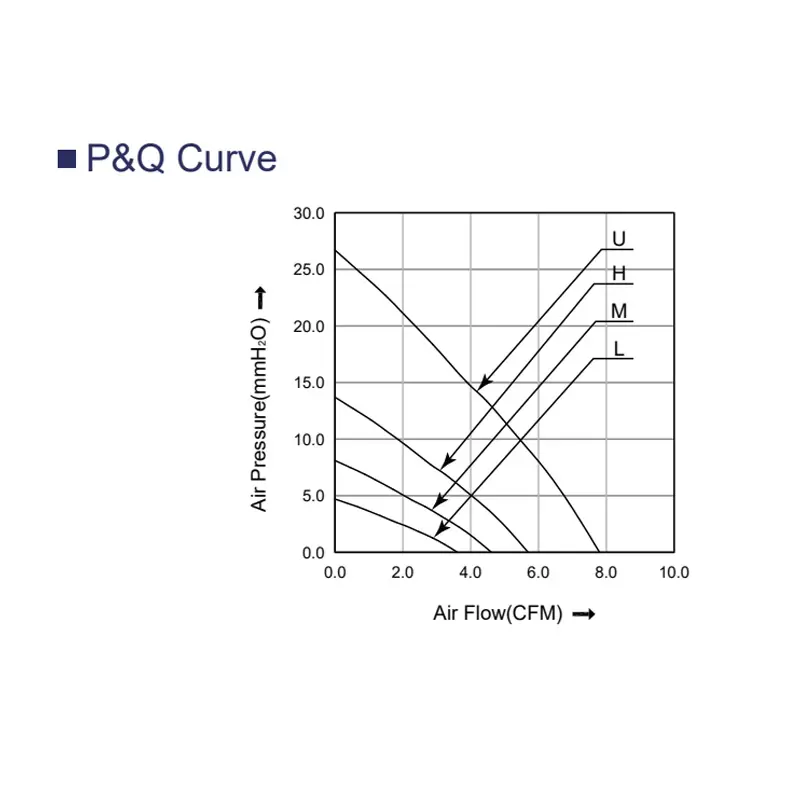

Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB6025L05 | 5 | 4.0～5.75 | 0.23 | 3000 | 0.1 | 3.6 | 4.7 | 0.19 | 26.4 |
| HB6025M05 | 5 | 4.0～5.75 | 0.35 | 4000 | 0.13 | 4.6 | 8.1 | 0.32 | 30.6 |
| HB6025H05 | 5 | 4.0～5.75 | 0.45 | 5000 | 0.16 | 5.7 | 13.7 | 0.54 | 36.8 |
| HB6025L12 | 12 | 7.0～13.8 | 0.13 | 3000 | 0.1 | 3.6 | 4.7 | 0.19 | 26.4 |
| HB6025M12 | 12 | 7.0～13.8 | 0.18 | 4000 | 0.13 | 4.6 | 8.1 | 0.32 | 30.6 |
| HB6025H12 | 12 | 7.0～13.8 | 0.23 | 5000 | 0.16 | 5.7 | 13.7 | 0.54 | 36.8 |
| HB6025U12 | 12 | 7.0～13.8 | 0.4 | 6500 | 0.22 | 7.8 | 26.7 | 1.05 | 44.7 |
| HB6025L24 | 24 | 14.0～27.6 | 0.06 | 3000 | 0.1 | 3.6 | 4.7 | 0.19 | 26.4 |
| HB6025M24 | 24 | 14.0～27.6 | 0.09 | 4000 | 0.13 | 4.6 | 8.1 | 0.32 | 30.6 |
| HB6025H24 | 24 | 14.0～27.6 | 0.14 | 5000 | 0.16 | 5.7 | 13.7 | 0.54 | 36.8 |
| HB6025U24 | 24 | 14.0～27.6 | 0.23 | 6500 | 0.22 | 7.8 | 26.7 | 1.05 | 44.7 |
| HB6025M48 | 48 | 28.0～56.0 | 0.06 | 4000 | 0.13 | 4.6 | 8.1 | 0.32 | 30.6 |
| HB6025H48 | 48 | 28.0～56.0 | 0.09 | 5000 | 0.16 | 5.7 | 13.7 | 0.54 | 36.8 |
| HB6025U48 | 48 | 28.0～56.0 | 0.14 | 6500 | 0.22 | 7.8 | 26.7 | 1.05 | 44.7 |
