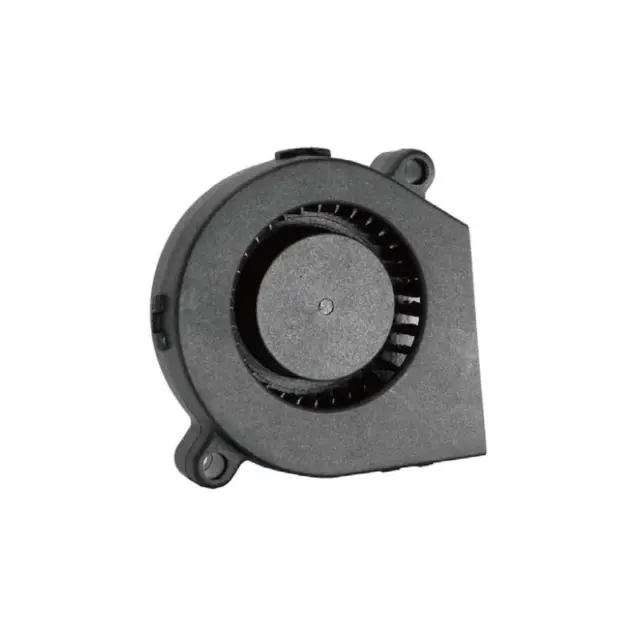

5015 50x50x15mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan
DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB5015L05 | 5 | 4.0～5.75 | 0.23 | 4000 | 0.09 | 3.1 | 9.7 | 0.38 | 31.2 |
| HB5015M05 | 5 | 4.0～5.75 | 0.35 | 5000 | 0.11 | 3.9 | 16.5 | 0.65 | 39.2 |
| HB5015H05 | 5 | 4.0～5.75 | 0.5 | 6000 | 0.14 | 4.8 | 27.5 | 1.08 | 42.7 |
| HB5015L12 | 12 | 7.0～13.8 | 0.09 | 4000 | 0.09 | 3.1 | 9.7 | 0.38 | 31.2 |
| HB5015M12 | 12 | 7.0～13.8 | 0.14 | 5000 | 0.11 | 3.9 | 16.5 | 0.65 | 39.2 |
| HB5015H12 | 12 | 7.0～13.8 | 0.23 | 6000 | 0.14 | 4.8 | 27.5 | 1.08 | 42.7 |
| HB5015L24 | 24 | 14.0～27.6 | 0.06 | 4000 | 0.09 | 3.1 | 9.7 | 0.38 | 31.2 |
| HB5015M24 | 24 | 14.0～27.6 | 0.09 | 5000 | 0.11 | 3.9 | 16.5 | 0.65 | 39.2 |
| HB5015H24 | 24 | 14.0～27.6 | 0.14 | 6000 | 0.14 | 4.8 | 27.5 | 1.08 | 42.7 |
