4510 45x45x10mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan

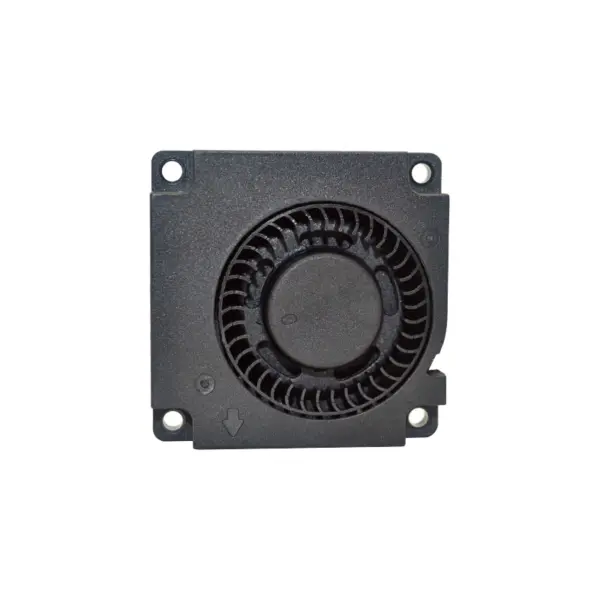

DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB4510D05 | 5 | 4.0～5.75 | 0.15 | 4000 | 0.07 | 2.39 | 4.57 | 0.18 | 25.8 |
| HB4510L05 | 5 | 4.0～5.75 | 0.2 | 4500 | 0.07 | 2.62 | 5.58 | 0.22 | 27.9 |
| HB4510M05 | 5 | 4.0～5.75 | 0.25 | 5000 | 0.08 | 2.87 | 6.85 | 0.27 | 29.9 |
| HB4510H05 | 5 | 4.0～5.75 | 0.3 | 5500 | 0.09 | 3.18 | 8.63 | 0.34 | 33.5 |
| HB4510D12 | 12 | 7.0～13.8 | 0.08 | 4000 | 0.07 | 2.39 | 4.57 | 0.18 | 25.8 |
| HB4510L12 | 12 | 7.0～13.8 | 0.1 | 4500 | 0.07 | 2.62 | 5.58 | 0.22 | 27.9 |
| HB4510M12 | 12 | 7.0～13.8 | 0.12 | 5000 | 0.08 | 2.87 | 6.85 | 0.27 | 29.9 |
| HB4510H12 | 12 | 7.0～13.8 | 0.15 | 5500 | 0.09 | 3.18 | 8.63 | 0.34 | 33.5 |
