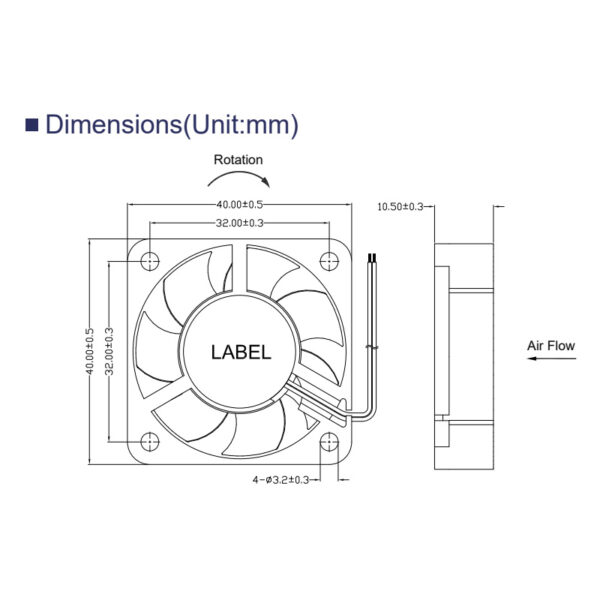

4010 fan 5v 12v 24v cooling dc 40x40x10mm

hdhfan dc 5v 12v 4010 fan 24v 40mm 40x40x10mm dc axial cooling fan

* Frame: Plastic (Black) 94V-0
* Impeller: Plastic (Black) 94V-0
* Lead Wires: UL type or Equivalent, AWG#28, Red +, Black –
* Operating Temperature: -25℃~+70℃,5%~90%RH
*Storage Temperature: -40℃~+80℃,5%~90%RH
* Weight: 16.0g

4010 Fan DC Cooling – High Airflow & Reliable Performance

The **4010 fan** (40x40x10mm) is a **DC axial fan** designed for **efficient cooling** in power supplies, industrial equipment, and electronics. Available in **5V, 12V, and 24V**, it ensures stable performance with **ball bearing technology** for long lifespan.

Key Features:
High airflow for effective heat dissipation
PWM control (0-10VDC) for adjustable speed
Tach output** for real-time monitoring
Multiple protections**: Locked-Rotor, Reverse Polarity, Over-voltage, Soft Start

Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD

High-speed cooling fan Manufacturer 4010 fan

Perfect for power supplies, mini PCs, routers, and industrial applications. Contact us for bulk orders & custom solutions: [email protected]

Model
No.
Rated
Voltage
Operating
Voltage
Rated
Current

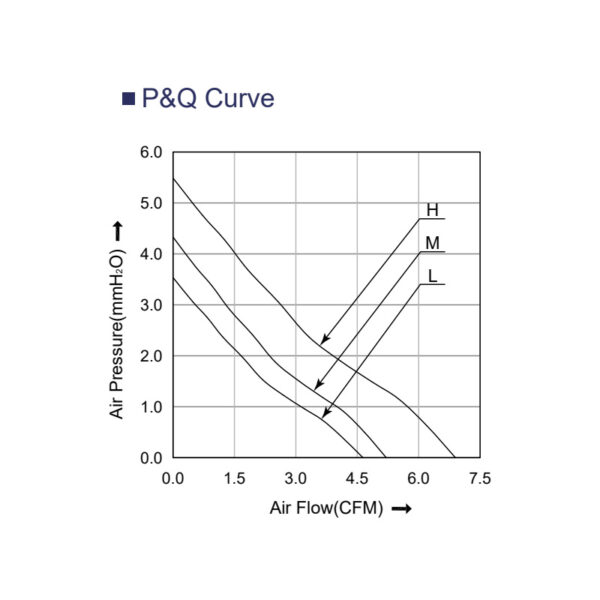

Speed Max.
Air Flow
Max.
Static Pressure
Noise
VDC VDC A RPM m³/min CFM mmH2O inH2O dB
HD4010L05B 5 4.0~5.75 0.18 5000 0.13 4.60 3.50 0.14 24.70
HD4010M05B 5 4.0~5.75 0.25 6000 0.15 5.20 4.30 0.17 29.00
HD4010H05B 5 4.0~5.75 0.35 7000 0.20 6.90 5.50 0.22 34.50
HD4010L12B 12 7.0~13.8 0.09 5000 0.13 4.60 3.50 0.14 24.70
HD4010M12B 12 7.0~13.8 0.13 6000 0.15 5.20 4.30 0.17 29.00
HD4010H12B 12 7.0~13.8 0.18 7000 0.20 6.90 5.50 0.22 34.50
HD4010L24B 24 14.0~27.6 0.04 5000 0.13 4.60 3.50 0.14 24.70
HD4010M24B 24 14.0~27.6 0.06 6000 0.15 5.20 4.30 0.17 29.00
HD4010H24B 24 14.0~27.6 0.09 7000 0.20 6.90 5.50 0.22 34.50







×
