4010 40x40x10mm dc blower fan dc 5v 12v 24v dc blower fan ball bearing blower fan

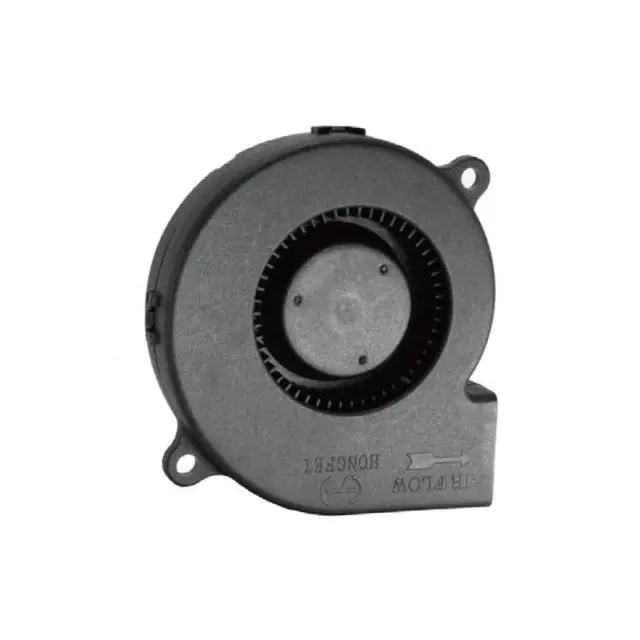

DC Brushless blower
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HB4010L05 | 5 | 4.0～5.75 | 0.09 | 5500 | 0.05 | 1.94 | 5.37 | 0.21 | 28 |
| HB4010M05 | 5 | 4.0～5.75 | 0.13 | 7000 | 0.07 | 2.43 | 9.45 | 0.37 | 31 |
| HB4010H05 | 5 | 4.0～5.75 | 0.18 | 8500 | 0.08 | 3 | 14.33 | 0.56 | 34 |
| HB4010L12 | 12 | 7.0～13.8 | 0.06 | 5500 | 0.05 | 1.94 | 5.37 | 0.21 | 28 |
| HB4010M12 | 12 | 7.0～13.8 | 0.09 | 7000 | 0.07 | 2.43 | 9.45 | 0.37 | 31 |
| HB4010H12 | 12 | 7.0～13.8 | 0.13 | 8500 | 0.08 | 3 | 14.33 | 0.56 | 34 |
