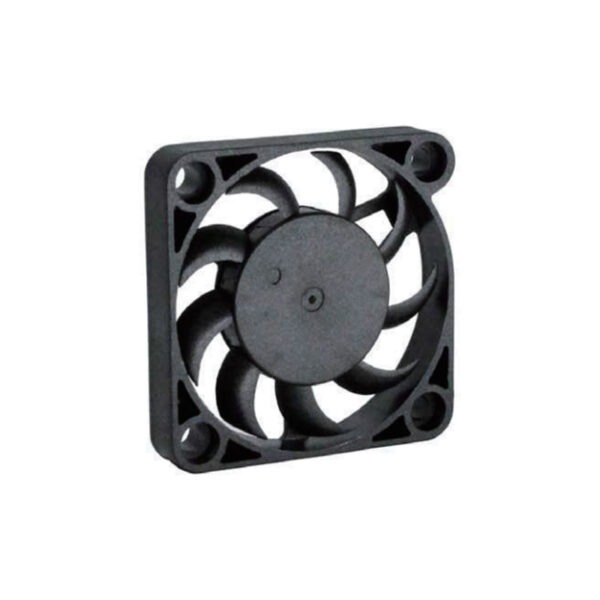

4007 40x40x7mm dc 5v 12v 24v dc axial fan ball bearing cooling fan
DC Brushless 40mm cooling fan motor best thin fan mini cooling dc 12v 4007
Technical Feature: Control input 0-10VDC/PWM, Tach output, Locked-Rotor protection, Reverse Polarity, Over-voltage Protection, Soft Start Protection
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD4007L05 | 5 | 4.0～5.75 | 0.18 | 4000 | 0.07 | 2.60 | 1.80 | 0.07 | 21.70 |
| HD4007M05 | 5 | 4.0～5.75 | 0.25 | 5000 | 0.11 | 3.90 | 2.30 | 0.09 | 26.30 |
| HD4007H05 | 5 | 4.0～5.75 | 0.35 | 6000 | 0.14 | 4.90 | 2.90 | 0.11 | 30.50 |
| HD4007L12 | 12 | 7.0～13.8 | 0.09 | 4000 | 0.07 | 2.60 | 1.80 | 0.07 | 21.70 |
| HD4007M12 | 12 | 7.0～13.8 | 0.13 | 5000 | 0.11 | 3.90 | 2.30 | 0.09 | 26.30 |
| HD4007H12 | 12 | 7.0～13.8 | 0.18 | 6000 | 0.14 | 4.90 | 2.90 | 0.11 | 30.50 |
