2510 axial fan 25x25x10mm dc 5v 12v dc cooling fan manufacturers
DC brushless cooling fan 25mm
The 2510 axial fan, sized 25x25x10mm and operating at DC 5V or 12V, is a DC brushless cooling fan with a 25mm diameter. It has notable technical features including 0 – 10VDC/PWM control input, tach output, locked-rotor, reverse polarity, over-voltage, and soft start protection.
This is widely used in small laptops and 3D printers for USB Micro DC cooling. Its 25mm brushless motor, being only 2.5CM thin and silent, is perfect for space-constrained and noise-sensitive applications.
25mm brushless motor thin 2.5CM silent 2510 axial fan
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |

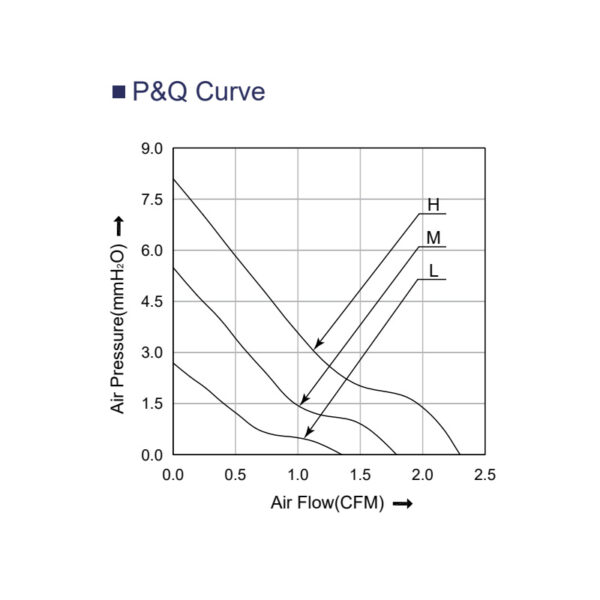

Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD2510L05 | 5 | 4.0～5.75 |
0.13 | 7000 | 0.04 | 1.30 | 3.10 | 0.12 | 20.0 |
| HD2510M05 | 5 | 4.0～5.75 |
0.21 | 10000 | 0.05 | 1.80 | 5.50 | 0.22 | 26.0 |
| HD2510H05 | 5 | 4.0～5.75 |
0.30 | 13000 | 0.07 | 2.30 | 8.10 | 0.32 | 33.0 |
| HD2510L12 | 12 | 7.0～13.8 |
0.06 | 7000 | 0.04 | 1.30 | 3.10 | 0.12 | 20.0 |
| HD2510M12 | 12 | 7.0～13.8 |
0.09 | 10000 | 0.05 | 1.80 | 5.50 | 0.22 | 26.0 |
| HD2510H12 | 12 | 7.0～13.8 |
0.13 | 13000 | 0.07 | 2.30 | 8.10 | 0.32 | 33.0 |
