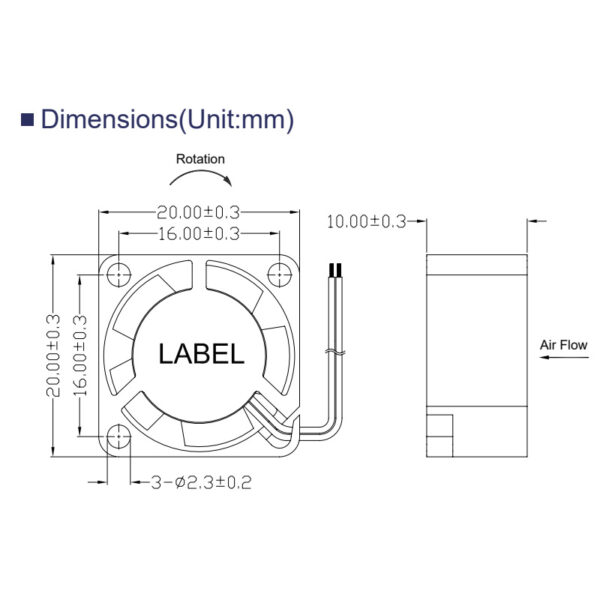

2010 fan 20x20x10mm dc 5v 12v 24v axial fan ball bearing cooling fan
DC Brushless Laptop ultra small fan micro cooling fan
The 2010 fan, with its compact 20x20x10mm dimensions, is a remarkable DC brushless ultra-small fan specifically designed for laptop cooling. This 20mm cooling fan packs a punch in terms of functionality.
Its technical features are truly impressive. The control input spanning from 0 – 10VDC/PWM offers precise control over the fan’s speed, allowing it to adjust according to the laptop’s thermal demands. The tach output provides valuable data about the rotational speed, which is crucial for effective thermal management. The locked-rotor protection ensures the fan’s safety and the laptop’s integrity in case of any rotor blockages. Reverse polarity protection guards against incorrect electrical connections, and the over-voltage protection shields it from power surges. Additionally, the soft start protection minimizes wear and tear during startup, prolonging the fan’s lifespan.
Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 3v/5v/12v/24v/28v/36v/48v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68
*Function: Tacho meter/RD/FG/PWM+Tacho meter/PWM+RD
| Model No. |
Rated Voltage |
Operating Voltage |
Rated Current |
Speed | Max. Air Flow |
Max. Static Pressure |
Noise | ||
| VDC | VDC | A | RPM | m³/min | CFM | mmH2O | inH2O | dB | |
| HD2010L05 | 5 | 4.0～5.75 | 0.06 | 10000 | 0.03 | 1.10 | 2.20 | 0.09 | 18.8 |
| HD2010M05 | 5 | 4.0～5.75 | 0.08 | 12000 | 0.03 | 1.20 | 2.70 | 0.11 | 21.3 |
| HD2010H05 | 5 | 4.0～5.75 | 0.13 | 14000 | 0.04 | 1.40 | 4.30 | 0.17 | 24.2 |
| HD2010L12 | 12 | 7.0～13.8 | 0.03 | 10000 | 0.03 | 1.10 | 2.20 | 0.09 | 18.8 |
| HD2010M12 | 12 | 7.0～13.8 | 0.05 | 12000 | 0.03 | 1.20 | 2.70 | 0.11 | 21.3 |
| HD2010H12 | 12 | 7.0～13.8 | 0.08 | 14000 | 0.04 | 1.40 | 4.30 | 0.17 | 24.2 |
