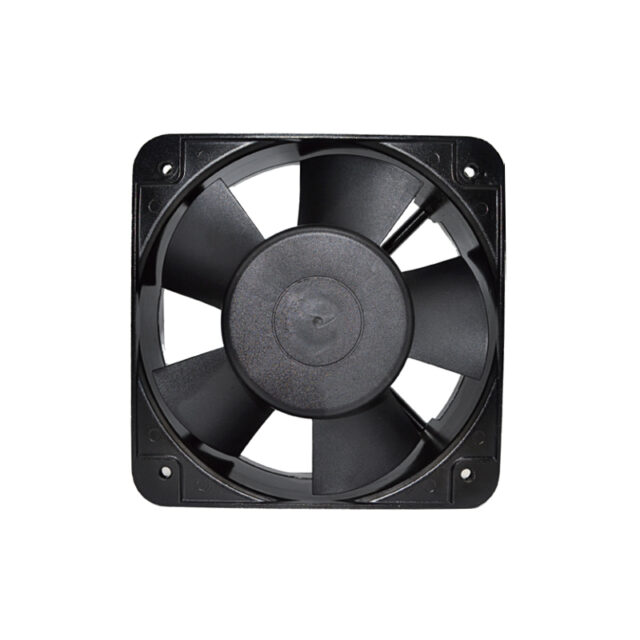

1751 172x150x51mm Ac Axial Fan

AC-1751

HA1751-1

HDH Axial Fan ac 110v 220v 380v 1751 172x150x51mm

* Impeller: Plastic (Black) 94V-0

* Material of Housing: Aluminum Alloy

* Lead Wires: UL type or Equivalent, AWG#28, Red +, Black –

* Operating Temperature: -25℃~+70℃，5%~90%RH

*Storage Temperature: -40℃~+80℃，5%~90%RH

* Weight:920g

Categories: AC Cooling Fan/ Axial fan

Tags: 110V/220V/380V/ac axial fan/ac cooling fan/axial dc cooling fan/axial fan/brushless cooling fan/cooling fan

Description

1751 172x150x51mm Ac Axial Fan Ac 110v 220v 380v ball bearing axial fan

AC Brushless Axial fan

Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 110v/220v/380v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68

Model No.	Bearing System	Rated Voltage	Frequency	Current	Input Power	Speed	Air Flow	Static Pressure	Noise
Model No.	Bearing	VDC	Hz	A	W	RPM	CFM	mmH2O	dB
HA1751S(B)1HL	Sleeve/Ball	110	50/60	0.48/0.45	38/36	2600/3000	170/196	11.5/14	49/56
HA1751S(B)1ML	Sleeve/Ball	110	50/60	0.33/0.30	28/27	2400/2600	155/170	7.5/9.7	45/49
HA1751S(B)1LL	Sleeve/Ball	110	50/60	0.15/0.13	21/20	2100/2400	137/155	3.0/3.9	39/45
HA1751S(B)2HL	Sleeve/Ball	220	50/60	0.25/0.22	38/36	2600/3000	170/196	11.5/14	49/56
HA1751S(B)2ML	Sleeve/Ball	220	50/60	0.19/0.15	28/27	2400/2600	155/170	7.5/9.7	45/49
HA1751S(B)2LL	Sleeve/Ball	220	50/60	0.14/0.13	21/20	2100/2400	137/155	3.0/3.9	39/45
HA1751S(B)3HL	Sleeve/Ball	380	50/60	0.14/0.13	38/36	2600/3000	170/196	11.5/14	49/56
