17150 171x50mm Ac Axial Fan

AC-17150

HA1750-1

HDH Axial Fan ac 110v 220v 380v 17150 171x50mm

* Impeller: Plastic (Black) 94V-0

* Material of Housing: Aluminum Alloy

* Lead Wires: UL type or Equivalent, AWG#28, Red +, Black –

* Operating Temperature: -25℃~+70℃，5%~90%RH

*Storage Temperature: -40℃~+80℃，5%~90%RH

* Weight:900g

Categories: AC Cooling Fan/ Axial fan

Tags: 110V/17151/220V/380V/ac axial fan/ac cooling fan/axial dc cooling fan/axial fan/brushless cooling fan/cooling fan

Description

17150 171x50mm Ac Axial Fan Ac 110v 220v 380v ball bearing axial fan

AC Brushless Axial fan

Fan performance options:
*Bearing: Ball/Hydraulic/Sleeve
*Voltage: 110v/220v/380v
*Waterproof: IP54/IP55/IP56/IP66/IP67/IP68

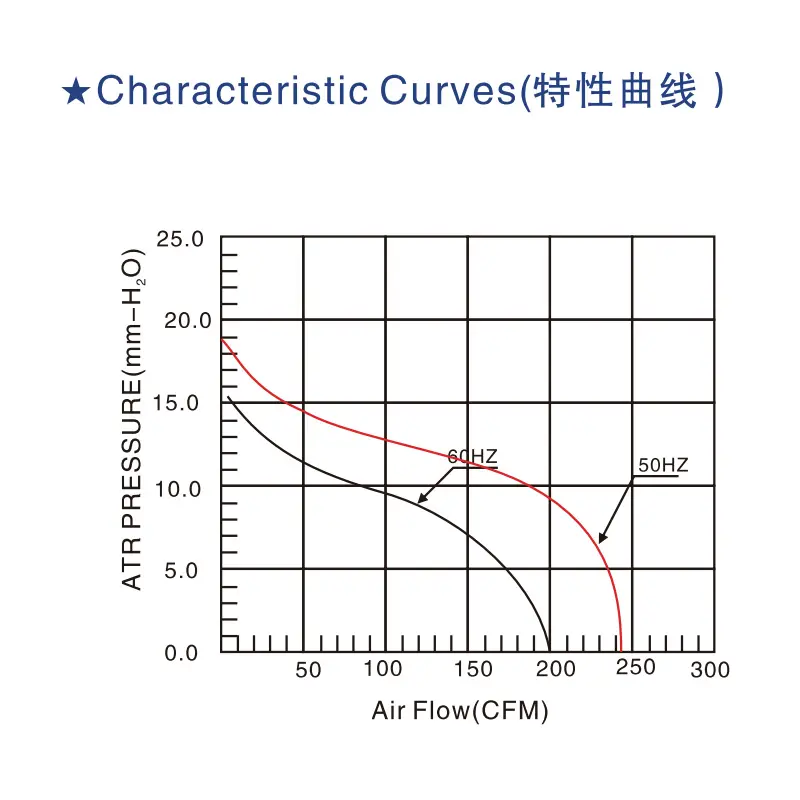

Model No.	Bearing System	Rated Voltage	Frequency	Current	Input Power	Speed	Air Flow	Static Pressure	Noise
Model No.	Bearing	VDC	Hz	A	W	RPM	CFM	mmH2O	dB
HA17150S(B)1HL	Sleeve/Ball	110	50/60	0.5/0.45	34/33	2700/2950	190/235	16/17.8	45/50
HA17150S(B)2HL	Sleeve/Ball	220	50/60	0.22/0.24	34/33	2700/2950	190/235	16/17.8	45/50
HA17150S(B)3HL	Sleeve/Ball	380	50/60	0.13	34	2500	190	16	45
